Slot drawing thermal bonding production line
Download PDF
ConsultationProduct Parameters
| Raw materials | PET chips/PLA chips |
| Product specification | 10－150g/m2 |
| Equipment work width series: (customizable according to requirements) | --1.6m--丨--2.4m--丨--3.2m-- |
| Denier | 1.0-3.0dpf |
| Production speed | 15-150m/min |
| Drawing type | Slot air drawing |
| Capacity | 2400t/y 丨 3700t/y 丨 5000t/y |
Note: Select single-mode or dual-mode head based on customer requirements.
Product Introduction
PET spunbond thermal bonding production line
Complete set of equipment for Tubular drawing PET spunbond thermal bonding production line
Tubular drawing PET spunbond thermal bonding nonwovens have the characteristics of high tensile strength, small transverse strength ratio, good dimensional stability, aging resistance and corrosion resistance.

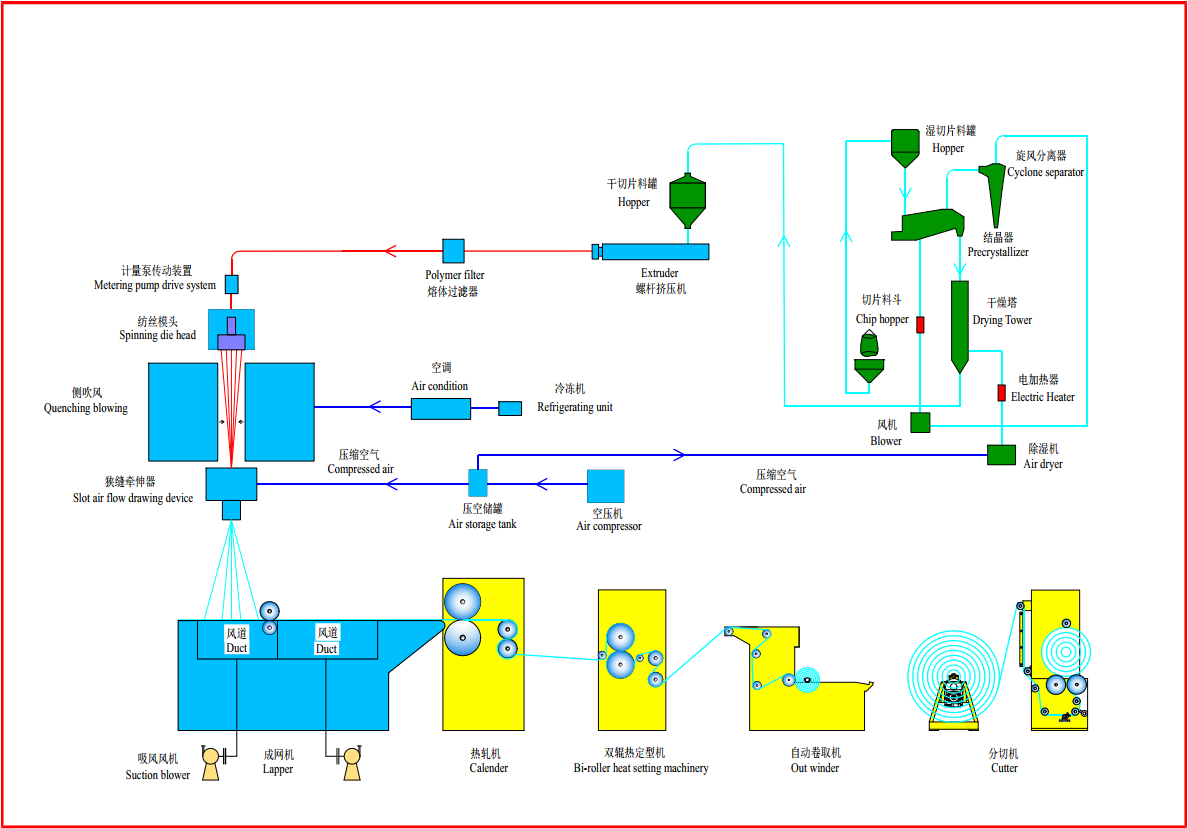

Flow Chart
Application Area
Mainly used for gas and liquid filter materials or composite filter materials, building reinforcement, household textiles, clothing interlining, floor leather base cloth, shed cover materials, packaging materials, etc.
